Plastic recycling has evolved into one of the most critical industrial processes in modern waste management. As the CEO of Amige, a company dedicated to shredding and crushing technologies, I have observed firsthand how the technical workflow of plastic recycling determines both efficiency and product quality. In this article, I will outline the recycling process in detail, focusing on the technical parameters, equipment requirements, and industrial best practices.
The recycling of plastic follows a systematic, multi-stage workflow: collection, sorting, washing, shredding, melting, pelletizing, and finally reprocessing into end-use applications. Each stage requires precision, proper machinery, and strict quality control protocols to ensure that the recycled output can compete with virgin plastic.
This breakdown will provide a step-by-step technical view of how plastic is recycled, highlighting industry standards and operational considerations.
Why is plastic recycling important at an industrial scale?
From an industrial perspective, recycling plastic reduces dependence on virgin petrochemical feedstocks, conserves energy, and lowers greenhouse gas emissions. According to waste management industry reports, the recycling of PET and HDPE can save up to 60–70% of the energy compared to virgin production.
For manufacturers, consistent recycled resin quality translates into cost savings and regulatory compliance. More countries now enforce extended producer responsibility (EPR) requirements, which means that recycling isn’t just environmentally beneficial—it is legally and economically necessary.
Stage 1: Collection and Transportation
Recycling begins with the collection of post-consumer and post-industrial plastics. Municipal solid waste streams, dedicated recycling bins, and buyback centers provide the input. Industrial facilities also contribute production scraps and rejects.
Collection logistics determine the efficiency of downstream operations. High-density urban centers benefit from automated collection systems, while rural areas rely on manual aggregation. Plastics are transported in compacted bales or loose form to recycling facilities. The baling density (typically 250–350 kg/m³) impacts transportation cost and storage efficiency.
Stage 2: Sorting and Classification
Sorting is the first critical technical stage. Plastics are classified based on resin type, color, and contamination level. The Resin Identification Code (RIC) system (numbers 1–7) guides classification, with PET (#1) and HDPE (#2) being the most recycled worldwide.
Sorting technologies include:
- Near-Infrared (NIR) spectroscopy scanners – detect polymer type with 90–95% accuracy.
- Density separation tanks – float-sink systems differentiate PET (density ~1.38 g/cm³) from polyolefins (density ~0.91–0.96 g/cm³).
- Manual sorting – still used for quality assurance, especially in facilities handling mixed waste streams.
The effectiveness of sorting directly impacts the downstream melt flow index (MFI) of recycled pellets. Cross-contamination (e.g., PVC in PET) can degrade the polymer during extrusion, producing defects or yellowing.
Stage 3: Washing and Decontamination
Washing removes contaminants such as food residues, adhesives, inks, and labels. Industrial-scale washing lines consist of:
- Pre-wash units (friction washers, hot water tanks at 70–90°C).
- Caustic washing (alkaline solutions, typically 1–2% NaOH mixed with surfactants) to dissolve adhesives and labels.
- Rinse and float-sink tanks to separate caps, labels, and other lightweight fractions.
The throughput of a modern washing line ranges from 500–3,000 kg/h, depending on equipment scale. Proper washing ensures that recycled pellets meet FDA/EFSA standards for food-grade applications, especially for PET.
Stage 4: Size Reduction (Shredding and Granulation)
At Amige, this is where our expertise lies. Plastic bales and washed feedstocks are fed into shredders and granulators to reduce size.

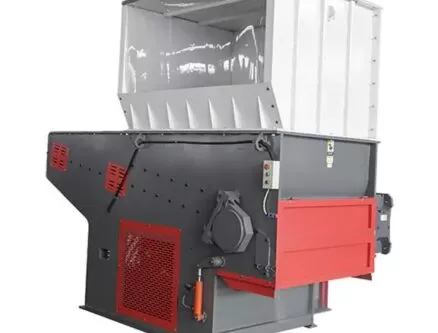

- Primary shredders: Designed for bulky items like crates, drums, and pipes. Output size: 30–100 mm flakes. Motor power: 45–110 kW.
- Granulators: Secondary size reduction, producing flakes of 8–20 mm. Equipped with hardened steel blades, rotor speeds around 500–700 rpm.
Uniform particle size improves downstream melting consistency. Energy efficiency is critical—our latest models achieve energy consumption rates of 0.25–0.35 kWh per kg of plastic processed, well below older industry averages.
Stage 5: Extrusion and Melting
The shredded flakes are fed into extrusion lines, where they undergo controlled melting. Processing temperatures depend on polymer type:
- PET: 250–280°C
- HDPE: 180–220°C
- PP: 160–200°C
- PVC: 160–210°C
Extrusion screws must be engineered for optimal shear and residence time. Degassing units remove moisture and volatile contaminants, preventing bubble formation. Multi-zone heaters allow fine control of melt temperature profiles.
Output from the extruder is either direct-sheet reprocessing or, more commonly, pelletizing for further use.
Stage 6: Pelletizing
Pelletizing transforms molten plastic into uniform pellets, which are the standard feedstock for manufacturers.
- Strand pelletizing: Molten polymer extruded into strands, cooled in water baths, and cut into pellets (3–5 mm).
- Underwater pelletizing: Polymer strands cut directly in water chambers—ideal for high-output PET and HDPE lines.
- Die-face pelletizing: Suitable for polyolefins, producing spherical pellets.
The target bulk density of pellets is typically 0.55–0.65 g/cm³. Pellet quality is assessed via melt flow index (MFI), moisture content (<0.02%), and color.
Stage 7: Reprocessing and End-Use
Pellets are shipped to converters who manufacture them into films, bottles, fibers, or injection-molded products.
- Recycled PET (rPET): Widely used in food packaging, textiles (polyester fiber), and beverage bottles.
- Recycled HDPE (rHDPE): Common in pipes, detergent bottles, and pallets.
- Recycled PP (rPP): Utilized in automotive parts and household goods.
End-use success depends on consistent pellet specifications. For example, rPET with intrinsic viscosity (IV) above 0.75 dl/g is required for bottle-to-bottle applications.
Challenges in the Recycling Process
Despite progress, technical barriers remain:
- Contamination – PVC in PET streams can degrade at extrusion, causing acetaldehyde formation.
- Downcycling – Mechanical recycling reduces polymer chain length over cycles, lowering strength and clarity.
- Mixed plastics – Multi-layer films are often non-recyclable with current mechanical methods.
- Energy intensity – Though more efficient now, recycling still consumes significant power per ton of output.
Chemical recycling (pyrolysis, depolymerization, solvolysis) is emerging as a complement, capable of handling mixed or contaminated plastics. However, high capital costs and energy use remain obstacles.
Efficiency Metrics and Industry Standards
Industrial recycling plants measure success with key performance indicators (KPIs):
- Yield efficiency: % of usable pellets vs. input waste (typically 70–85%).
- Energy consumption: kWh per ton of processed plastic.
- Water recycling rate: Closed-loop washing systems recycle 85–90% of water used.
- Carbon footprint reduction: rPET production saves 2.5 tons of CO₂ per ton compared to virgin PET.
These benchmarks allow recyclers to optimize processes while meeting customer requirements for sustainable materials.
Conclusion
Plastic recycling is not a single action but a highly engineered, multi-stage workflow. Each stage—from collection to pelletizing—requires specialized equipment, strict technical parameters, and constant quality control. At Amige, we see recycling as both an environmental duty and a precision-driven industry that demands continuous innovation. By optimizing machinery and process design, we ensure recycled plastics remain competitive with virgin materials in both quality and efficiency.
