Waste PE PP Film Recycling Pelletizing Line
Recycling in LDPE LLDPE HDPE PP plastic films,milk bottles,oil barel etc crushed material . Efficient,Economical. Environmental. Developing,Manufacturing. Focusing on "Pelletizing" Recycling Industry. Brands: Amige, Waste PE PP film recycling pelletizing line, Waste Pelletizing....

Product details

Product details

1. Product features.

Product introduction of the Waste PE PP film recycling pelletizing line. Waste PE PP film recycling pelletizing line was the latest invention with a CE certificate. We devoted ourselves to the Waste PE PP film recycling pelletizing line for many years, covering most of Europe and the American market. We are expecting to become your long-term partner in China.

Features

l It is an automatic line, the production line includes a first extruder, second extruder, wash tank, blower machine, granule cutter, storage silo, and control panel.

l Good quality, complete functions, strong power

l More trustworthy, fine workmanship, good service, assured quality, customized on demand

Advantages

l With a consistently high-quality capacity.

l Reduced dusk

l Low heat generation

l Space savings and ease of maintenance

l We can manufacture the production line according to the customer requirement and pellet quality requirements;

l The Recycled pellet is mainly used for the LDPE film, HDPE bottle making, etc;

l This production line is highly automatic operating and saves labor costs and low after maintenance. Our machinery is widely used domestically and abroad in many countries.

2. Product parameter.

Machine modelSJ125/115SJ130/120SJ140/130SJ150/140SJ160/160
Main extruderMotor: 45kwScrew dia.: 125mmL/D: 1/23Gearbox: 225Motor: 55kwScrew dia.: 130mmL/D: 1/25Gearbox: 250Motor: 75kwScrew dia.: 140mmL/D: 1/25Gearbox: 280Motor: 90kwScrew dia.: 150mmL/D: 1/25Gearbox: 315Motor: 110kwScrew dia.: 160mmL/D: 1/28Gearbox: 330
Baby extruderMotor: 18.5kwScrew dia.: 115mmL/D: 1/10Gearbox: 173Motor: 22kwScrew dia.: 120mmL/D: 1/10Gearbox: 180Motor: 22kwScrew dia.: 120mmL/D: 1/10Gearbox: 180Motor: 30kwScrew dia.: 140mmL/D: 1/10Gearbox: 200Motor: 45kwScrew dia.: 160mmL/D: 1/10Gearbox: 225
Water cooling tankMade of stainless steel length of the tank: 3000 mmMade of stainless steel length of the tank: 3500 mmMade of stainless steel length of the tank : 3500 mmMade of stainless steel length of the tank: 4000 mmMade of stainless steel length of the tank: 5000 mm
Air blowerMotor: 1.5kwNoise: with 80 dBMotor: 2.2kwNoise: with 82 dBMotor: 2.2kwNoise: with 82 dBMotor: 3.0kwNoise : with 82 dBMotor: 3.0kwNoise : with 82 dB
Granule cutterType: 140Motor:3.0kw adjustable speed motorType: 200Motor:4.0kw adjustable speed motorType: 220 Motor :5.5kw adjustable speed motorType: 250 Motor:7.5kw adjustable speed motorType: 250 Motor :7.5kw adjustable speed motor
Storage containerSize:1200mm*1000mm*500mmMaterial : stainless steelSize:1200mm*1000mm*500mmMaterial : stainless steelSize:1200mm*1000mm*500mmMaterial : stainless steelSize:1200mm*1000mm*500mmMaterial : stainless steelSize:1200mm*1000mm*500mmMaterial : stainless steel
Control panelContactor: ChntTemperature Controller: HuibangContactor: ChntTemperature Controller: HuibangContactor: ChntTemperature Controller: HuibangContactor: ChntTemperature Controller: HuibangContactor: ChntTemperature Controller: Huibang

3. PRODUCTION APPLICATION

raw material for waste pe pp film recycling pelletizing line
final pellet for waste pe pp film recycling pelletizing line

The plastic pelletizer/granulator is mainly used to process waste plastic film bags, woven bags, basins, barrels, beverage bottles, daily necessities, etc. The waste plastic recycling granulator is suitable for most common waste plastics and is the most used in the waste plastic recycling industry. It is the most widely used and most popular plastic recycling processing machinery.

4. Product details of the Waste PE PP film recycling pelletizing line.

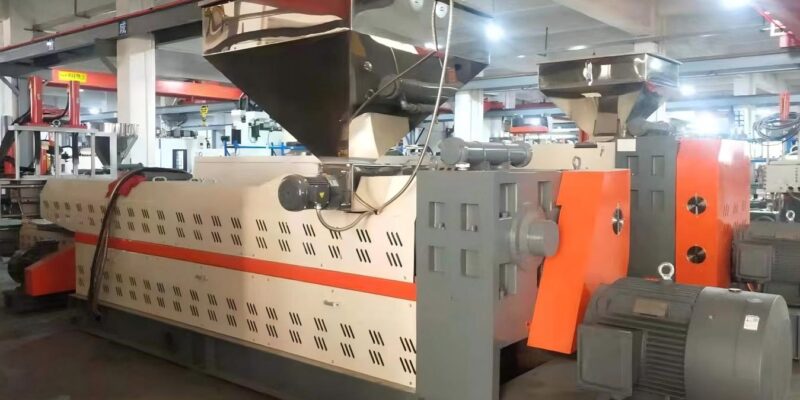

first extruder for waste pe pp film recycling pelletizing line
second extruder for double stage pe pp plastic pelletizing line 2

  l  All recycled materials can be produced after being sorted, crushed, and cleaned without being dried or dried.

  l  From raw material crushing, cleaning, feeding to pelletizing are all automated.

  l  Make full use of the high-pressure friction uninterrupted heating system, automatic heating production, avoid continuous heating so save electricity

5. QUALIFICATION

Factory

TAIZHOU AMIGE MACHINERY CO., LTD is a Professional Plastic Machinery manufacturer company located in Taizhou city, known as China Plastic Mold City, Zhejiang Province of China, We are dedicated to designing and developing high technology Plastic Machinery.

We have full processing equipment and processing facilities such as the metal shearing machine, metal bending machine, lathe machine, milling machine, and so on.

processing equipment for double stage pe pp plastic pelletizing line 1

Good machines need good processing equipment. In our workshop, there are 8 CNC machines, 2 grinding machines, and several lathes and other equipment.

We have powerful equipment processing capabilities and can customize equipment according to customer requirements to meet different production needs of customers.

6. DELIVER, SHIP, AND SERVE

l Package

Standard export cartons/bags

l Shipping

Sea/ Air/ UPS/DHL/TNT/FedEx

l What about the delivery time?

Normal it is 35 working days for delivery time.

We can produce special designs according to your drawing or sample.

l The payment term

TT /LC /West Union /cash.

l Our Service

Pre-sale: we offer a client the details of technician info, sign the sales contract, etc
In-sales: we supply the details layout, installation instructions, and technician support for the clients.
After-sales: we arrange an engineer to install the machinery and train the workers for the client if needed.
We have a 24-hour team to solve the after-sales problem
We have free spare parts with the machine

delivering machine for waste pe pp film recycling pelletizing line
container loading for waste pe pp film recycling pelletizing line
container loaded for waste pe pp film recycling pelletizing line

7. FAQ

Q1: What waste product can this Waste PE PP film recycling pelletizing line do?

A1: It is for waste HDPE rigid material, LDPE soft material, PP material, etc.

Q1: How many Kg/h does this rigid Waste PE PP film recycling pelletizing line can produce?

A1: Different materials for different capacities such as 200Kg/h or more.

Q1: What is the final product?

A1: The final products are plastic pellets.

Q1: What extra parts can you offer?

A1: We can offer an extra heater, mesh and working tool, etc.

Q1: What about the after-sale service?

A1: In delivering equipment, we offer clients some spare parts needed; If clients need some technical support, we can offer them online.
